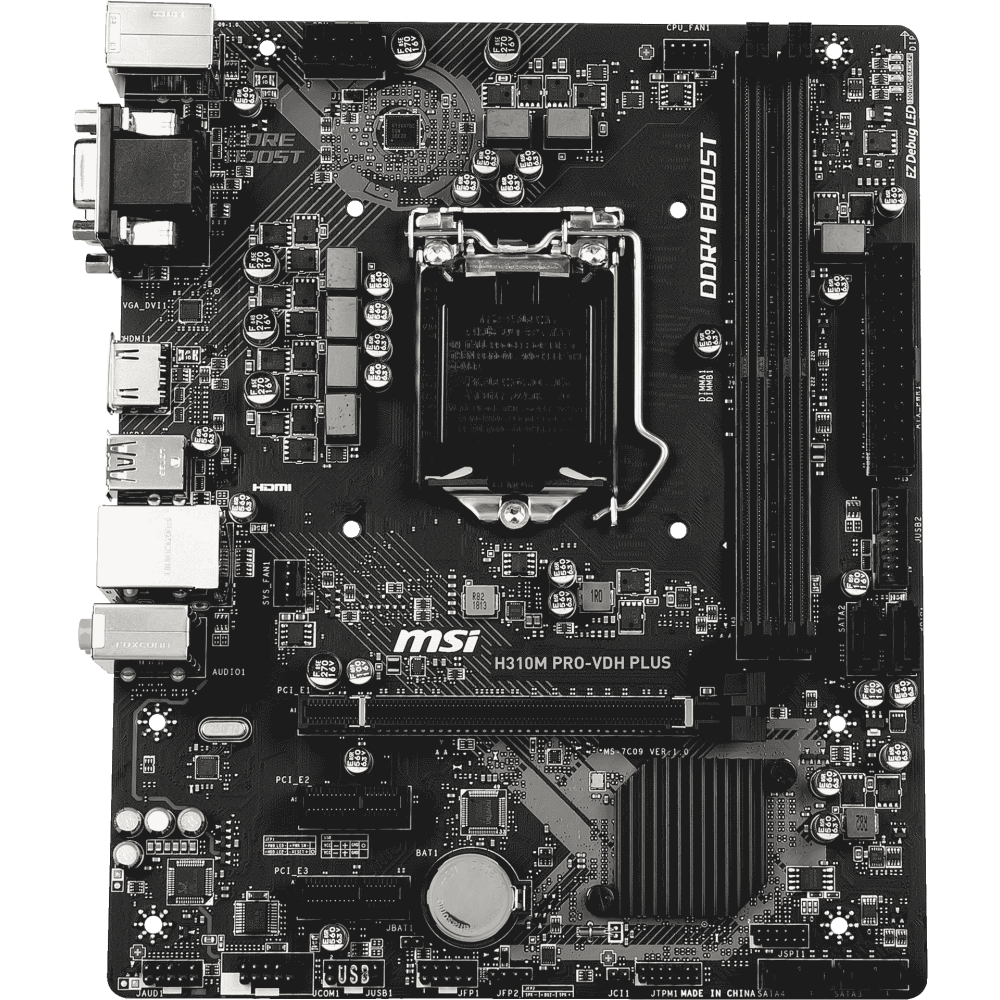

Motherboard MSI H310M Pro VDH Plus
MOTHERBOARD MSI H310M PRO VDH PLUS
$32.50
Contact Us
(office hours: 8:00/21:00)
Email: quuot@quuot.us
Delivery Time
Standard deliver arrives in about one day-Free
Policies
100% verified user, genuine commitment
Description:
- Type: M-ATX.
Processor
- Supports 8th and 9th generation Intel® CoreTM, Pentium® Gold and Celeron® processors for Socket LGA1151.
Chipset
- Intel® H310 Chipset
Memory
- 2 x DDR4 memory slots, support up to 32 GB.
- Supports DDR4 2666/2400/2133 MHz (by JEDEC).1
- Supports DDR4 2666/2400/2133 MHz (by XMP OC)1.
- Admit the double channel mode.
- Supports memory without a buffer without ECC.
- Supports Intel® Extreme Memory Profile (XMP).
- 2666 MHz only for I7 and I5 processors.
- See compatible memory.
Slots
- 1 x slot PCIe 3.0 x16.
- 2 x PCIe 2.0 x1.
Figures
- 1 x VGA port, supports a maximum resolution of 2048x1536 @ 50Hz, 2048x1280 @ 60Hz, 1920x1200 @ 60Hz.
- 1 x DVI-D port, supports a maximum resolution of 1920x1200 @ 60Hz.
- 1 x HDMI TM port, supports a maximum resolution of 4096x2160 @ 30H.
- It supports up to 2 screens simultaneously.
Storage
- Intel® H310 Chipset.
- 4 x SATA 6Gb / s ports.
- Supports Intel® fast storage technology.
USB
- Intel® H310 Chipset.
- 4 x USB 3.1 Gen1 ports (SuperSpeed USB) (2 A ports in the back panel, 2 ports available through the internal USB connector).
- 6 x USB 2.0 ports (High-speed USB ports) (4 ports on the back panel, 2 ports available through the internal USB connector).
Audio
- Códec Realtek ® ALC887.
- High definition audio of 7.1 channels.
- LAN 1 x Gigabit RTL8111H LAN controller.
Internal Connectors:
- 1 x 24 pin main ATX power connector.
- 1 x 8 pin ATX 12V power connector.
- 4 x 6 Gb/s SATA connectors.
- 1 x USB 3.1 Gen1 connector (admits 2 additional USB 3.1 Gen1 ports).
- 1 x USB 2.0 connector (admits 2 additional USB 2.0 ports).
- 1 x transparent CMOS bridge.
- 2 x front panel connectors.
- 1 x serial port connector.
- 1 x TPM module connector.
- 1 x intrusion connector in the chassis.
- 1 x audio connector from the front panel.
- 1 x 4 pin CPU fan connector.
- 1 x 4 pin system fan connector.
Posterior Panel:
- Combined PS / 2 port
- VGA port.
- Port HDMI.
- USB 3.1 Gen1.
- LAN port.
- HD audio connectors.
- USB 2.0 port.
- DVI-D port.
- USB 2.0 port.
